Dual row 1.27*1.27mm surface mount pin header connector

Place of Origin : China

Brand Name : Kezo

Model Number : KZPH-1.27-smt

Certification : RoHS compliance

MOQ : 1000pcs

Price : 0.001-0.5USD/pcs

Packaging Details : Bag, box, tube, etc

Delivery Time : 5-12 days

Payment Terms : TT, western union

Supply Ability : 100000pcs/day

Contact Now

Dual row 1.27*1.27mm surface mount pin header connector

Specification

Current Rating: 1 Amp
Insulator Resistance: 1000 MΩ min
Contact Resistance: 20 MΩ max
Dielectric Withstanding: AC 300V
Operating Temp.: -40°C to +105°C
Contact Material: Copper Alloy

Soldering Process:
PA6T(Standard)
IR Reflow: 260°C for 10 seconds
Wave: 230°C for 5-10 seconds
Manual Solder: 350°C for 3-5 seconds
PA9T/LCP(Option)
IR Reflow: 260°C for 10 seconds
Wave: 250°C for 5-10 seconds
Manual Solder: 350°C for 3-5 seconds

1.27mm single row smt surface mount dual base pin connector

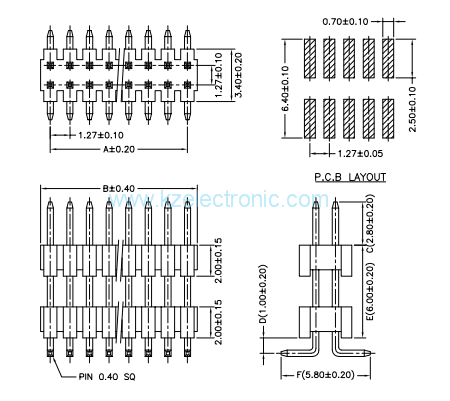

Drawing for reference

Dual row 1.27*1.27mm surface mount pin header connector


Buy cheap Dual row 1.27*1.27mm surface mount pin header connector product

Dual row 1.27*1.27mm surface mount pin header connector Images
